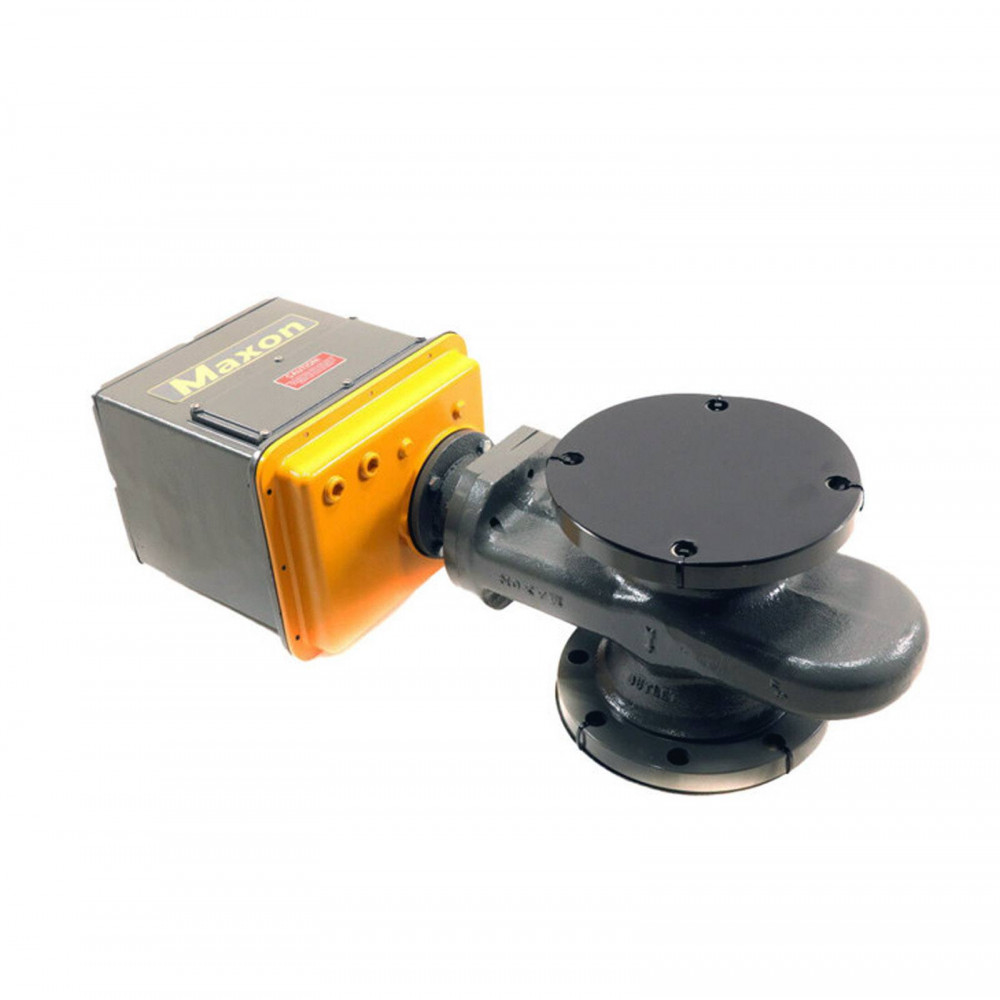

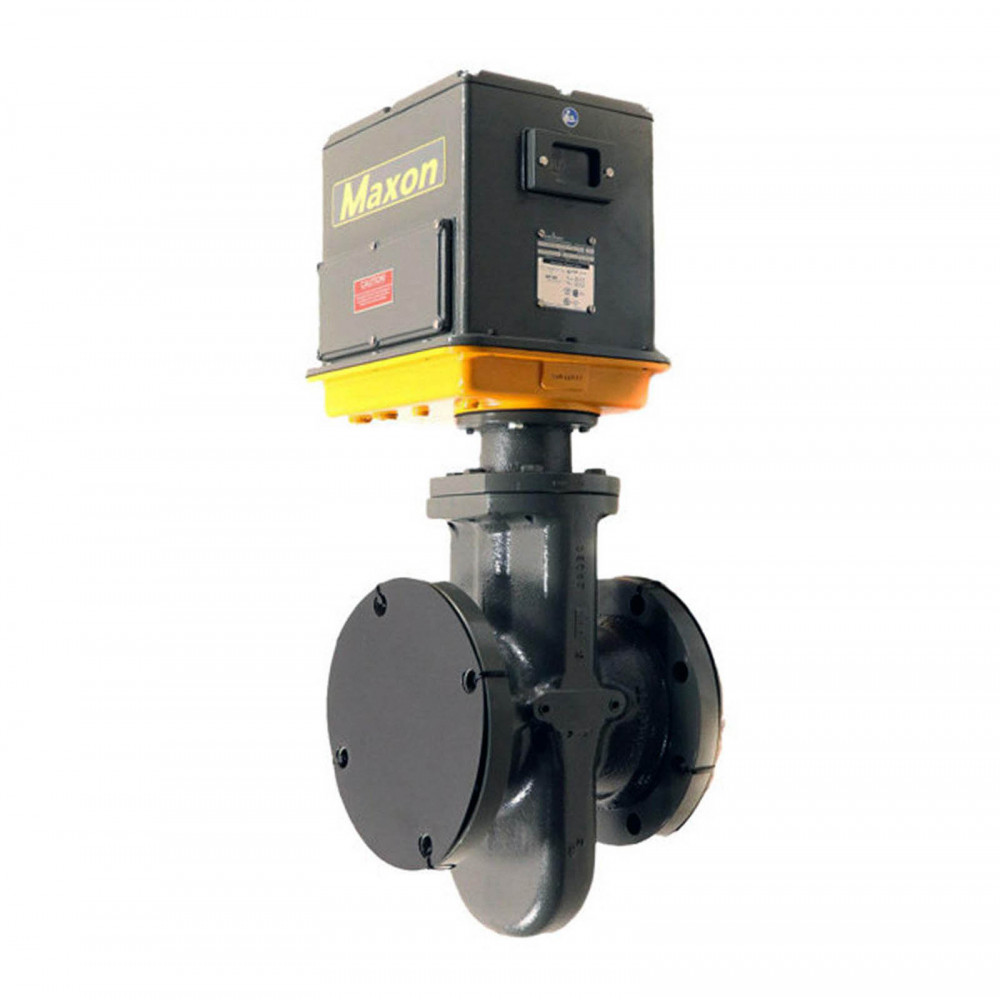

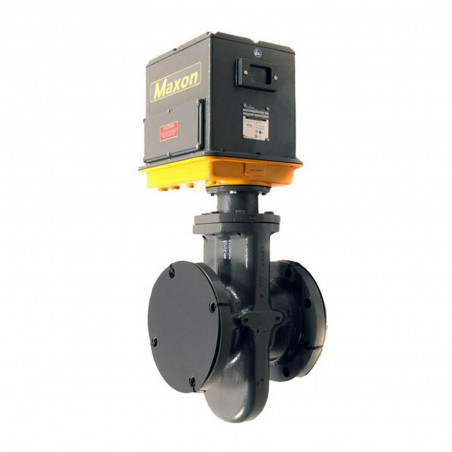

Maxon 6" (152mm) Gas Valve 120V AC 0-60PSI CV719

The MAXON 6" (152mm) Automatic Gas Shut-Off Valve (600HMA11-BA11-BB32A0) is a motorized, normally closed safety shut-off valve for high-capacity industrial gas systems. A powerful closing spring drives the valve closed in under 1 second, and any interruption in the power supplied through your safety circuit returns the valve to its normal position instantly. Part of the MAXON VOS2/VCS2 automatic valve series.

Key Features:

• Size: 6" (152mm) with ANSI flanged ports for high-capacity lines
• Voltage: 120V AC 60 Hz solenoid and motor supply
• Pressure Range: 0-60 PSI, with a Cv of 719
• Default Position: Normally closed. Spring closure in under 1 second on loss of power
• Opening: Motorized, 12 second timing
• Construction: Cast iron body with internal trim package #1, Buna O-ring seals and Buna bumper
• Rating: NEMA 4, general purpose classification
• Temperature Range: -20°F to 125°F ambient and gas
• Controls: Visual position indication. Integrates with analog control systems, DCS or PLC

Applications:

• Industrial combustion systems: Safety shut-off for burners, furnaces, ovens and boilers on high-capacity gas lines
• Plant and process engineering: Automated gas isolation within DCS or PLC controlled safety circuits

Why Choose the MAXON 6" Automatic Gas Shut-Off Valve?

• Fail-safe closure: Spring-driven shut-off in under 1 second whenever power to the safety circuit is interrupted
• Built for control systems: 12 second motorized opening, visual position indication and straightforward integration with analog, DCS or PLC control
• High capacity: 6" ANSI flanged ports and a Cv of 719 handle demand the smaller lines cannot

For high-capacity gas shut-off with proven fail-safe operation, order the MAXON 600HMA11-BA11-BB32A0 today. Ships in 3-5 business days via UPS with tracking.
