Yellow Turn to Reset (Emergency Fuel Shut Off)

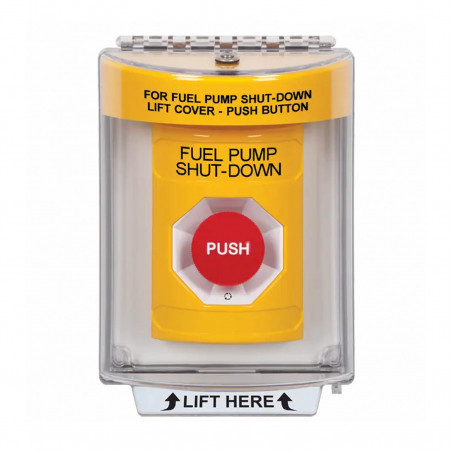

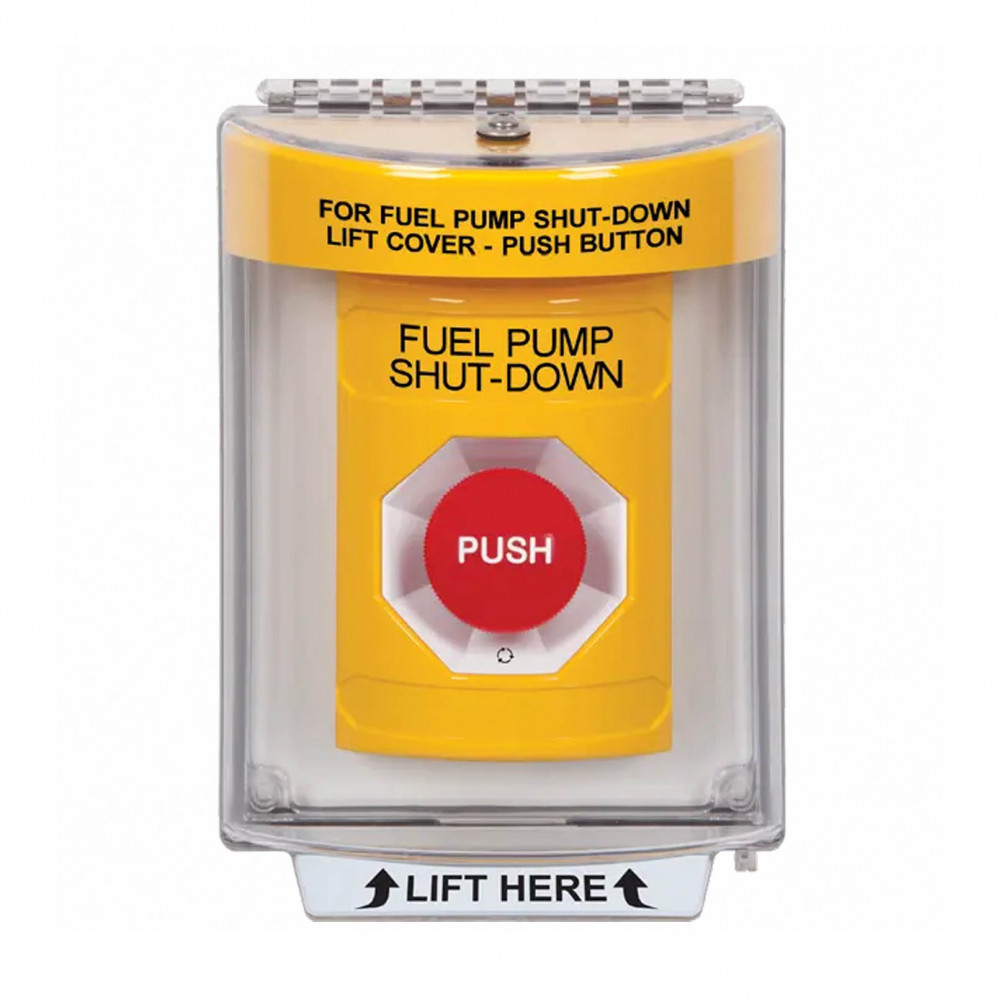

The SS2231PS-EN is a turn-to-reset emergency push button, built for fuel shutdown applications. Its patented curved shell design cuts down accidental activation, and the Universal Stopper cover adds a second layer of protection against knocks, tampering, and the weather. Staff get a clear, labelled point to hit in an emergency, and you get a switch that resets with a simple twist once the danger has passed.

Key Features:

• Turn-to-reset switch: twist the button to reset it after use, so a knock or bump doesn't cut your pump by accident.
• One N.O. and one N.C. contact as standard, with room for up to three isolated contacts on the same block.
• Contact rating: 3 amps at 600 VAC, or 1 amp at 250 VDC.
• Rated for 6,000 operations.
• Universal Stopper cover: a clear polycarbonate shield fits over the button. Lift it to reach the switch. Legitimate activation still works as normal.
• Polycarbonate housing with a 5VA flammability rating and a stainless steel backplate.
• Working range of minus 40°F to 250°F (minus 40°C to 121°C).
• ADA compliant push button.
• UL Listed to US and Canadian safety standards.
• Three year guarantee against breakage of the polycarbonate in normal use. One year on electro-mechanical parts.

Applications:

• Fuel pump shut down at petrol stations, depots, and fuel storage sites.
• Any site where staff need a clear, dedicated shut off point for fuel systems.
• Indoor or outdoor use, with the Universal Stopper cover fitted.

Installation Note:

This switch configuration may need a KIT-102722 spacer to clear a standard single gang box. Contact depth for this model is 2.04 inches.
