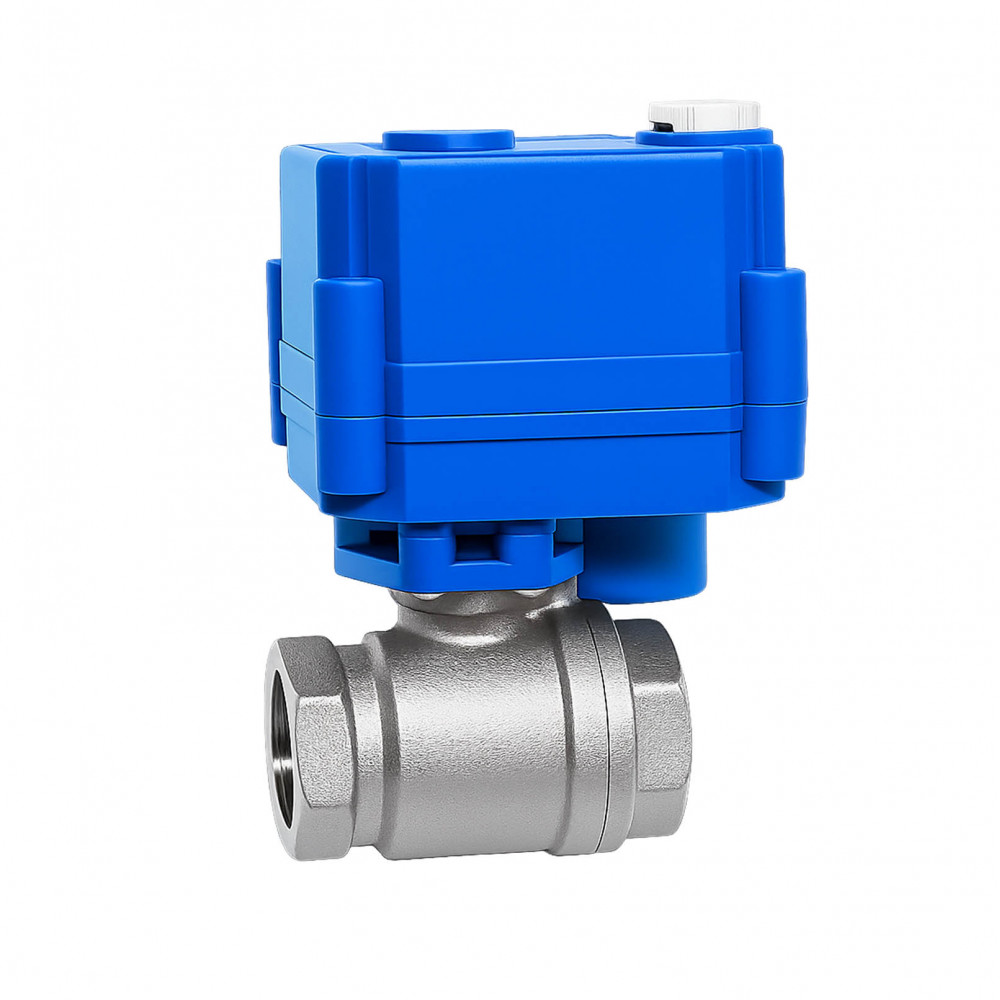

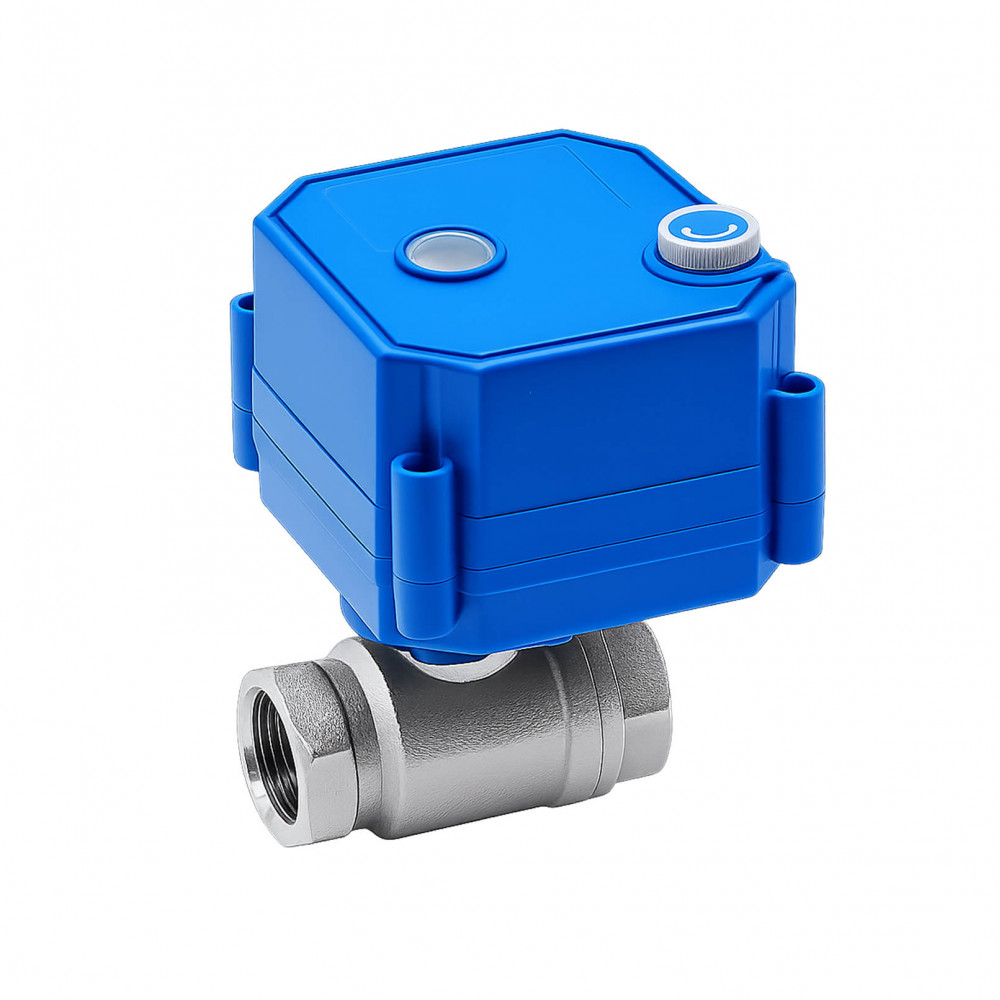

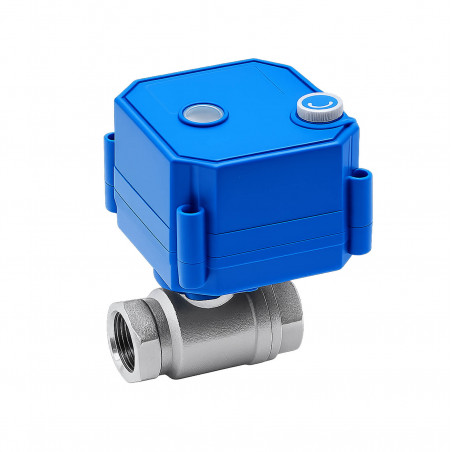

VSEBV ½" (15mm) Electric Stainless Steel Ball Valve (3wire 120V AC) Normally Open

The VSEBV 1/2" Electric Stainless Steel Ball Valve (VSEBVB115) is engineered to provide reliable two-way flow control for industrial and commercial systems. UL and cUL listed, and certified to NSF/ANSI 61, it meets the standards required for both general industrial use and potable water applications. As part of the VSEBV range, every model is built from stainless steel and pairs a low-torque actuator with a spring-return, fail-safe design, so your system stays protected even if power is lost.

With a 110-120V AC power supply and a 1/2" NPT connection, this ball valve delivers efficient, energy-conscious flow control for systems that demand consistent, dependable performance.

Key Features:

• Size: 1/2" / 15mm NPT, offering a compact footprint suited to smaller-scale systems where space is at a premium.
• Voltage: Operates on 110-120V AC, compatible with standard 110-120V AC building electrical circuits, with no additional transformer required.
• Pressure Rating: Rated up to 142 PSI, suitable for a wide range of system pressures.
• Connection Type: Screwed NPT, 2-way stainless steel ball valve for straightforward, secure installation.
• Default Position: Normally Open, so the valve stays open under normal conditions and closes when energised. Spring return drives it back open automatically if power is lost, keeping flow active in the fail-safe state.
• Material: Stainless steel body and ball for long-term corrosion resistance and durability.
• Housing: NEMA 4, 4X rated actuator housing, robust and impact-resistant for indoor or outdoor installation.
• Cable: Comes standard with a 1ft lead for straightforward wiring into your control circuit.
• Dimensions & Weight: 55mm long x 38mm high, weighing 0.5kg.
• Certifications: UL and cUL listed, and certified to NSF/ANSI 61 for potable water applications.

Applications:

• Industrial Flow Control: Suited to manufacturing plants, process lines, and utility systems where dependable two-way shut-off is essential.
• Continuous-Flow Systems: The normally open, fail-open design suits cooling loops, drain lines, and other processes where flow must continue by default, even through a power interruption.
• Standard Electrical Installations: Runs directly from a 110-120V AC supply, integrating into standard building or plant electrical circuits without extra control hardware.

• Reliable Performance: Low-torque actuator design delivers efficient operation and consistent flow control.
• Certified Safety: UL, cUL, and NSF/ANSI 61 certification for peace of mind in regulated environments.
• Fail-Safe Design: Spring return drives the valve back to its open position the moment power is lost, so flow continues in processes where stopping it is the greater risk.
• Durability: Impact-resistant NEMA 4/4X housing and stainless steel construction, built for long service life.
• Manual Override: A simple manual override knob lets you operate the valve directly if power is interrupted, keeping the system in your control.

For a certified, dependable electric ball valve, the VSEBV 1/2" Electric Stainless Steel Ball Valve (VSEBVB115) is an excellent choice for your flow control needs.
